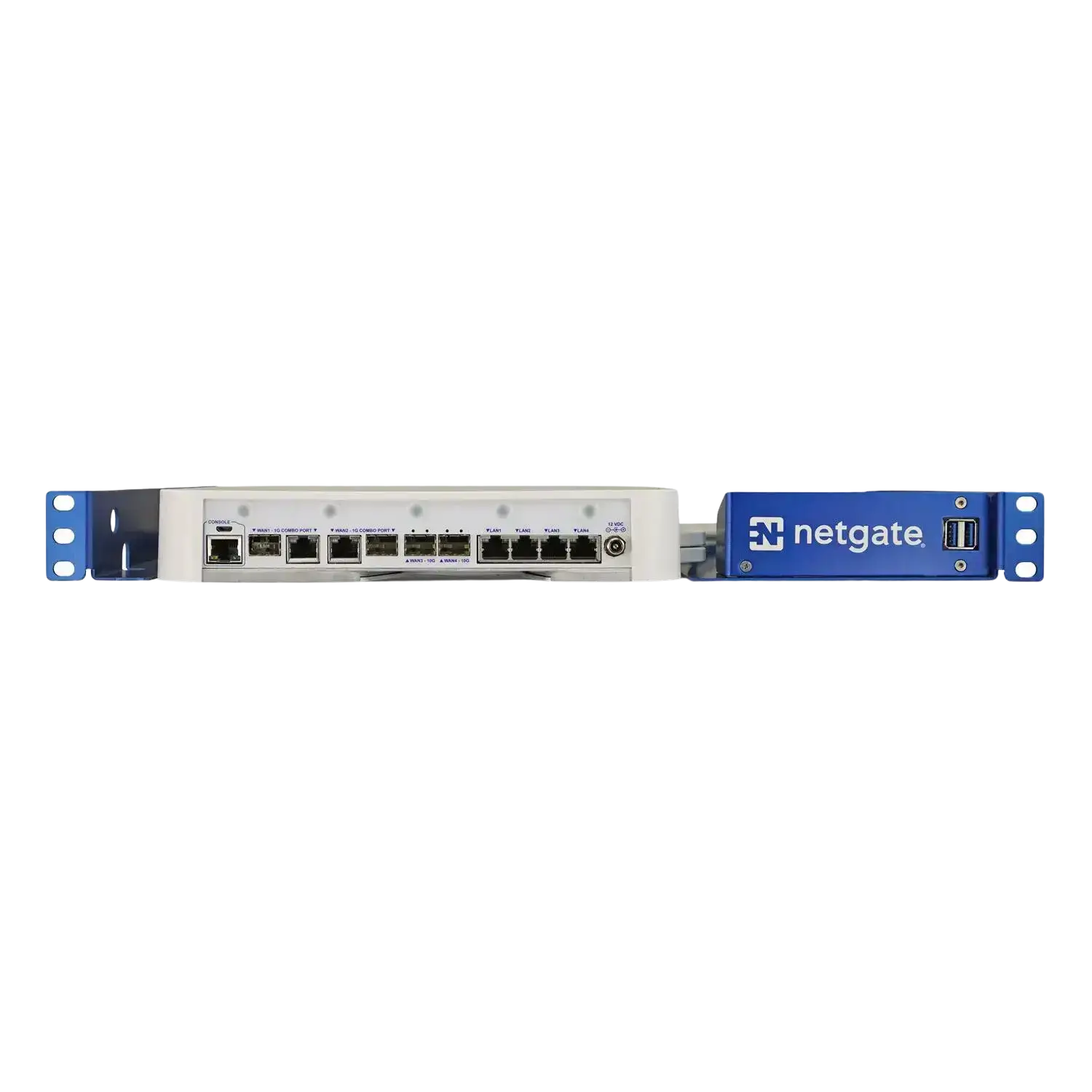

Netgate 8200 Router Vorderansicht, leistungsstarkes Netzwerkgerät für Betriebe, effiziente und sichere Datenkommunikation.

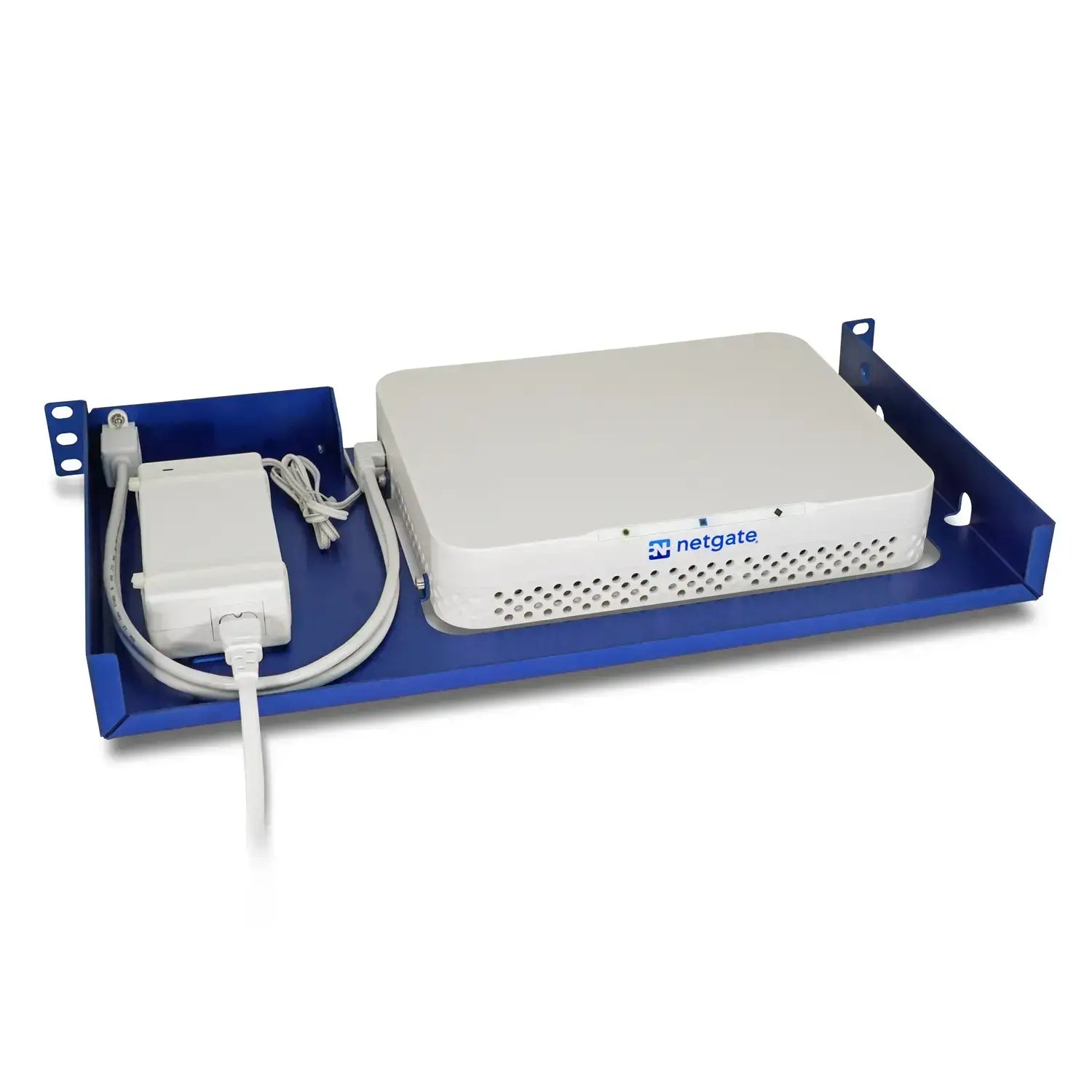

Netgate 8200 Netzwerk-Sicherheitsgerät mit mehreren Ports und Netzteil auf Rack, hochwertige Netzwerklösung

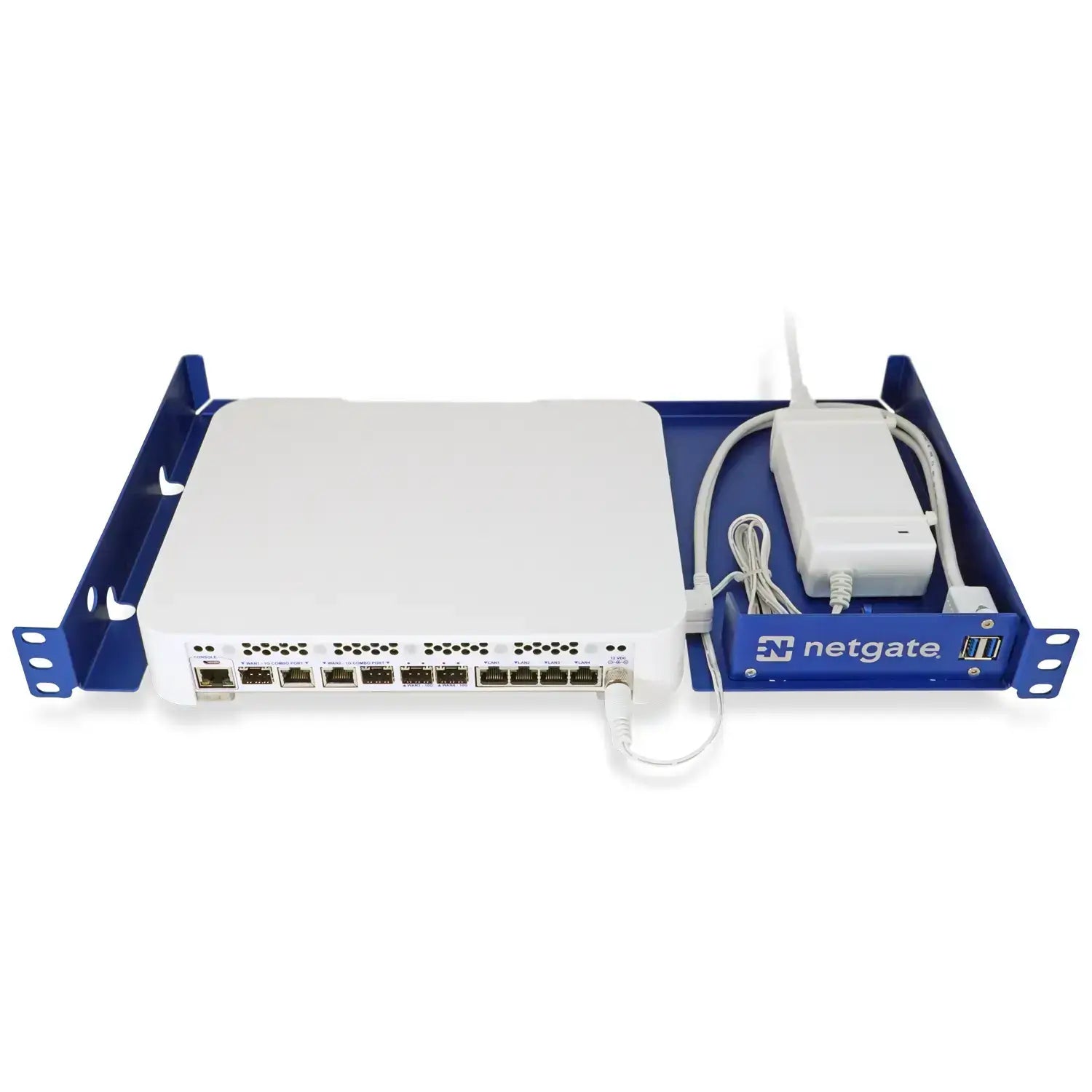

Netgate 8200 Netzwerkgerät und Netzteil auf blauem Rackhalterung
Netzwerksicherheitsgerät Netgate 8200, Rückansicht in blau und weiß, hochleistungsfähige Firewall für Unternehmen.

Netgate 8200

Sale price€1.439,00 EUR

Tax excluded. Shipping calculated at checkout

Your advantage : No customs duties and no import tax within the EU.

The hardware includes the latest version of pfSense+ (preinstalled).

Netgate 8200 MAX

Storage: 16GB RAM + 128GB Storage (Max)
Netgate support: TAC Lite (Free)
Initial setup of LanCologne: Without configuration
In stock
✆ Questions? Chat on WhatsApp now

If you need high-throughput firewall, routing, and VPN performance, look no further. The Netzgitter® 8200 with pfSense® Plus software is the fastest Intel® Atom®-based firewall we offer, in a whisper-quiet rackmount configuration. It is ideal for remote offices, edge deployments, managed service providers and enterprise networks.

Twice as much power

The Netgate 8200combines the power of an 8-core Intel Atom C3758R CPU with integrated QuickAssist & AES-NI along with 16GB of memory:

  • Over 80% higher firewall and VPN throughput than Netgate 6100
  • Twice the firewall performance and over 70% more VPN throughput than the outgoing Netgate 7100

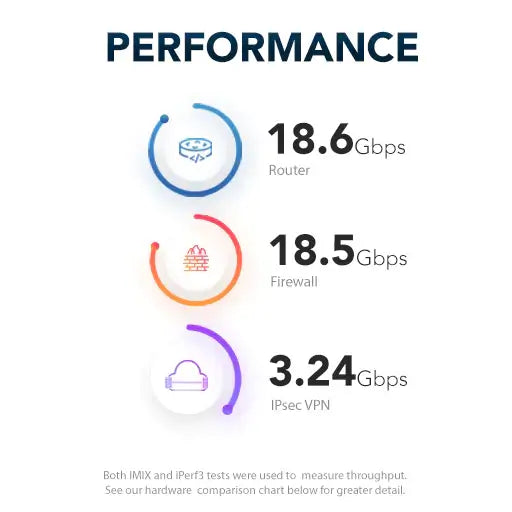

L3 Forwarding

  • IPERF3 traffic: 18.60 Gbit/s
  • IMIX traffic: 11.76 Gbps

Firewall

(10k ACLs)

  • IPERF3 traffic: 18.55 Gbps
  • IMIX traffic: 5.1 Gbps

IPsec VPN

(AES-GCM-128 w/QAT)

  • IPERF3 traffic: 3.24 Gbit/s
  • IMIX traffic: 810 Mbps
NETGATE 8200 PERFORMANCE TESTS PERFORMED WITH PFSENSE PLUS SOFTWARE VERSION 22.05
AFFORDABLE RELIABILITY

Experience the performance and business security you expect from leading secure networking applications at a fraction of the cost of proprietary alternatives. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc. with no artificial limits and no additional usage or feature-based pricing.

SIMPLE MANAGEMENT

Manage pfSense Plus software settings through our web-based GUI. No need to fiddle with a command line interface or type commands.

FLEXIBLE CONFIGURATION

From firewalls to unified threat management, you get all the security features you need to protect your network.

POWER SAVING & QUIET

An actively controlled fan integrated into the bottom panel of the case keeps the unit uncharacteristically quiet for such a powerful 1U system, and the Intel Atom processors are designed for low power consumption.

pfSense Plus software delivers the performance, flexibility, reliability and business security expected from leading secure network applications:

  • Up to 10 Gbit/s performance
  • Flexible options for third-party applications
  • Traditional management mechanisms
  • Proven reliability
  • Comprehensive support for securing business

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, transparency caching proxy, web content filtering, failover WAN and more.

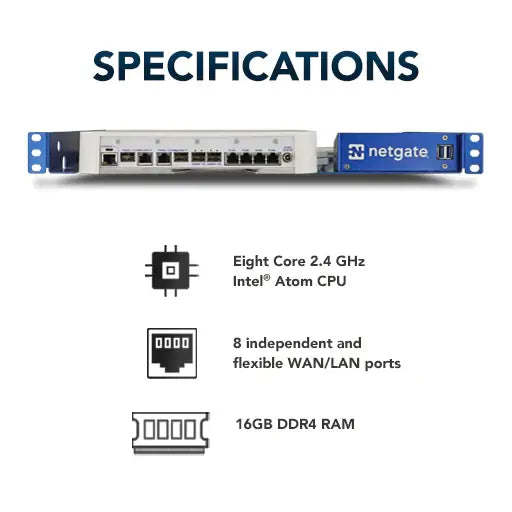

Technical specifications

Here you will find the most important technical data about the product. If you have any questions, you can always contact our customer service.

CPU

Intel Atom C3758R with QAT, 8-core @ 2.4 GHz (Denverton family)

CPU cores

8 cores

network

2x 10 Gbps SFP+ 2x 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" 4x 2.5 Gbps RJ-45

Storage

128GB NVMe M.2 SSD (B+M Key)

R.A.M.

16 GB DDR4 w/o ECC, single channel (soldered down)

extension

console port

"Cisco pinout" RJ45 + micro USB

USB ports

2x USB 3.0 ports

LEDs

3 x RGB LED(s)

Other

form factor

1U Rack – Aluminum, plastic, and steel enclosure.

19 x 10 x 1.75 inches
482.6 x 254 x 44.45mm

cooling

Active – integrated quiet chassis fan with onboard control

power adapter

Input: DC jack with threaded barrel connector
External ITE P/S AC/DC 100-240V, 50-60Hz, 60W
AC Inlet: IEC320-C14 (3 PIN)
German power cord IEC connector C13 power cord

Vicinity

0°C (32°F) to 40°C (104°F)

power consumption

certificates

support

Netgate Support TAC Lite Included
Netgate Support TAC Professional and TAC Enterprise at extra cost
All support services are provided by Netgate USA.
LanCologne is only an intermediary in the sale of the service.

Advantages of the Netgate 8200

LOW TOTAL COST OF OWNERSHIP

  • No artificial restrictions or additional programs are required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power consumption to save you money.
  • This system is designed for a long period of use.

GROW WITH YOU

  • From firewalls to unified threat management, you get all the security features you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages like Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery, and SquidGuard for anti-spam/anti-phishing and URL filtering . 1
  • Maximum active connections: 4,000,000

EASY MANAGEMENT VIA THE USER INTERFACE

  • Manage pfSense Plus software settings through our web-based GUI.
  • You no longer need to mess with a command line interface or type obscure commands.

SECURE REMOTE ACCESS

  • Connect between your offices via encrypted virtual private networks (VPN), let mobile workers connect securely, or connect to the cloud!
  • Use the built-in Amazon VPC wizard to easily establish VPN connections to your Amazon EC2 cloud.

BEST SUITED FOR:

  • Consumer
  • Remote workers
  • Networks for small and medium-sized enterprises
  • Small to medium sized branches
  • Managed Service Provider / Managed Security Service Provider (MSP/MSSP) On-Premises Appliance
  • Unternehmen
  • All who are looking for high performance without fan noise
  • Situations where a rackmount system is not an option
  • Everyone with high-speed gigabit connections
  • Many VPN connections



SOFTWARE FEATURES:

pfSense Plus software is a powerful firewall, router and VPN solution based on a number of highly regarded open source projects. The software effectively competes with far more expensive commercial alternatives and is used by hundreds of thousands of businesses, educational institutions and government agencies around the world. Leading features and capabilities for secure networking include:

  • Ad Blocker (pfBlockerNG)
  • Unencrypted portal
  • CARP / HA
  • DNS server
  • DHCP server
  • HTTP transparent / Web / Reverse Proxy (Squid)
  • IP / Country Block List (pfBlocker)
  • IDS/IPS
  • Package capture / inspection
  • Port forwarding
  • QOS / rate limiter
  • Software load balancer (HA proxy)
  • Traffic monitoring
  • Traffic logging, statistics and charts
  • Traffic design
  • VLAN
  • Wake-on-LAN
  • Website Blocker (pfBlocker)

Learn more about the power of pfSense Plus software here .
