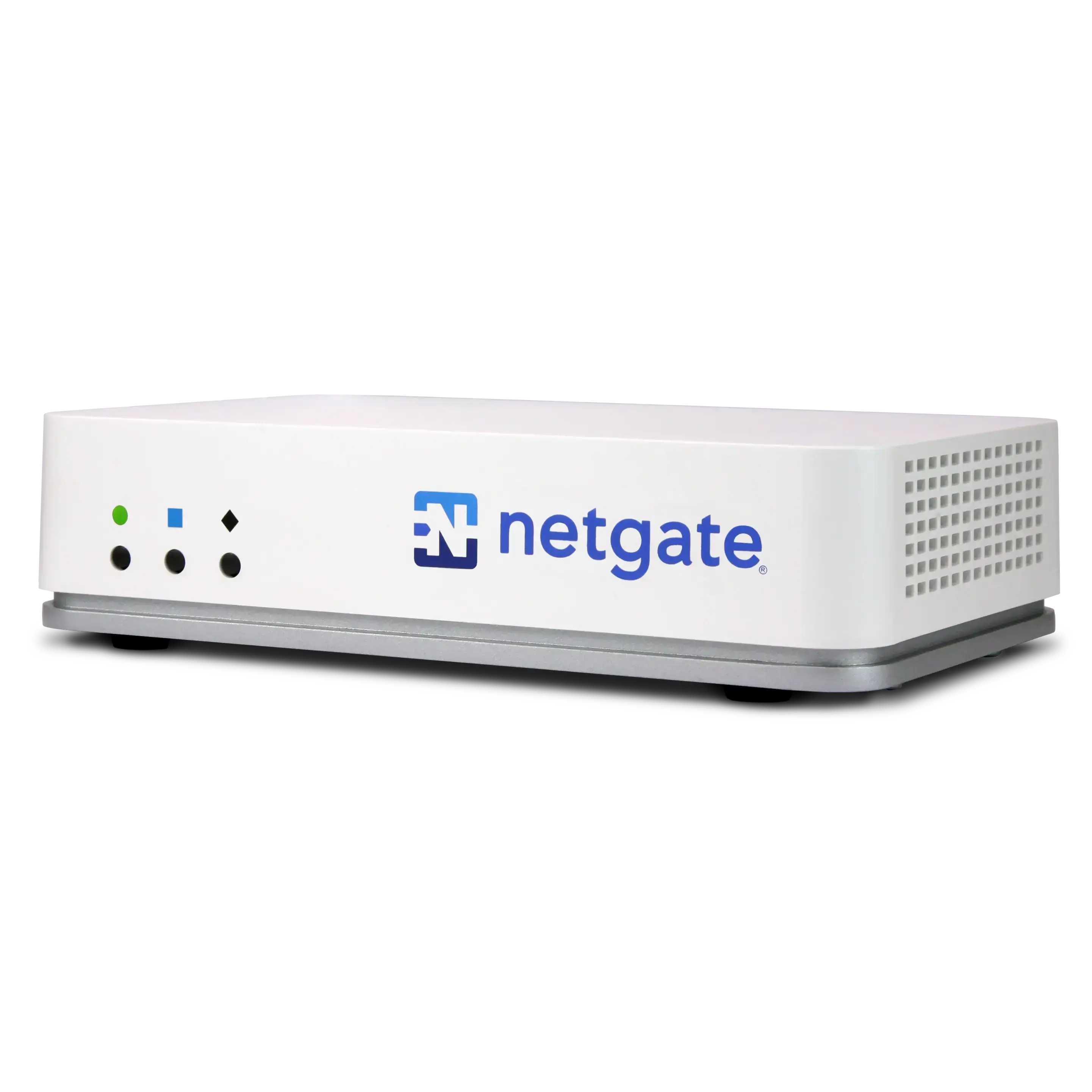

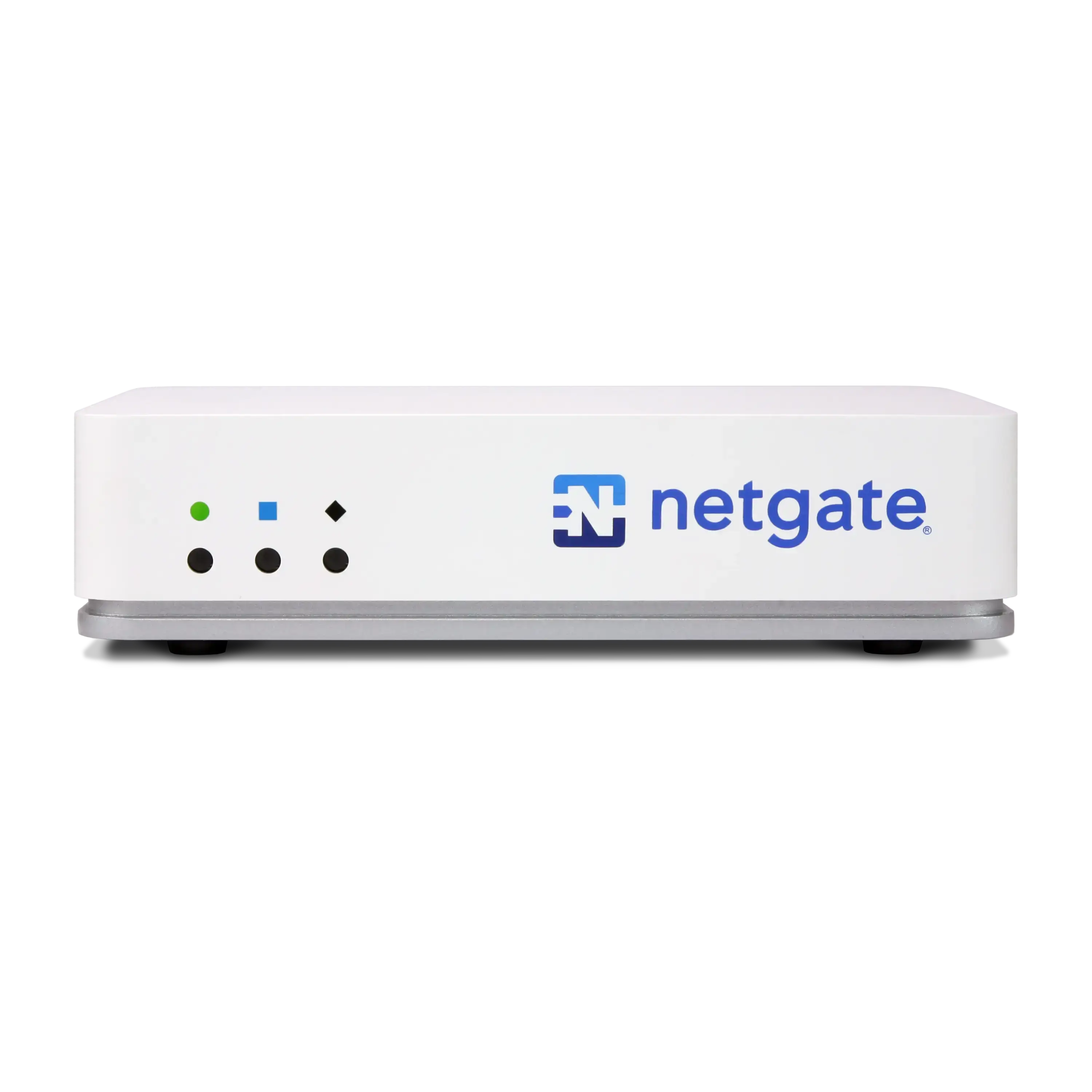

Netgate 2100 Netzwerk-Sicherheitsgerät, Vorderansicht, weißes Gehäuse, blaue Netgate-Logo, grüne und schwarze Anzeigelichter

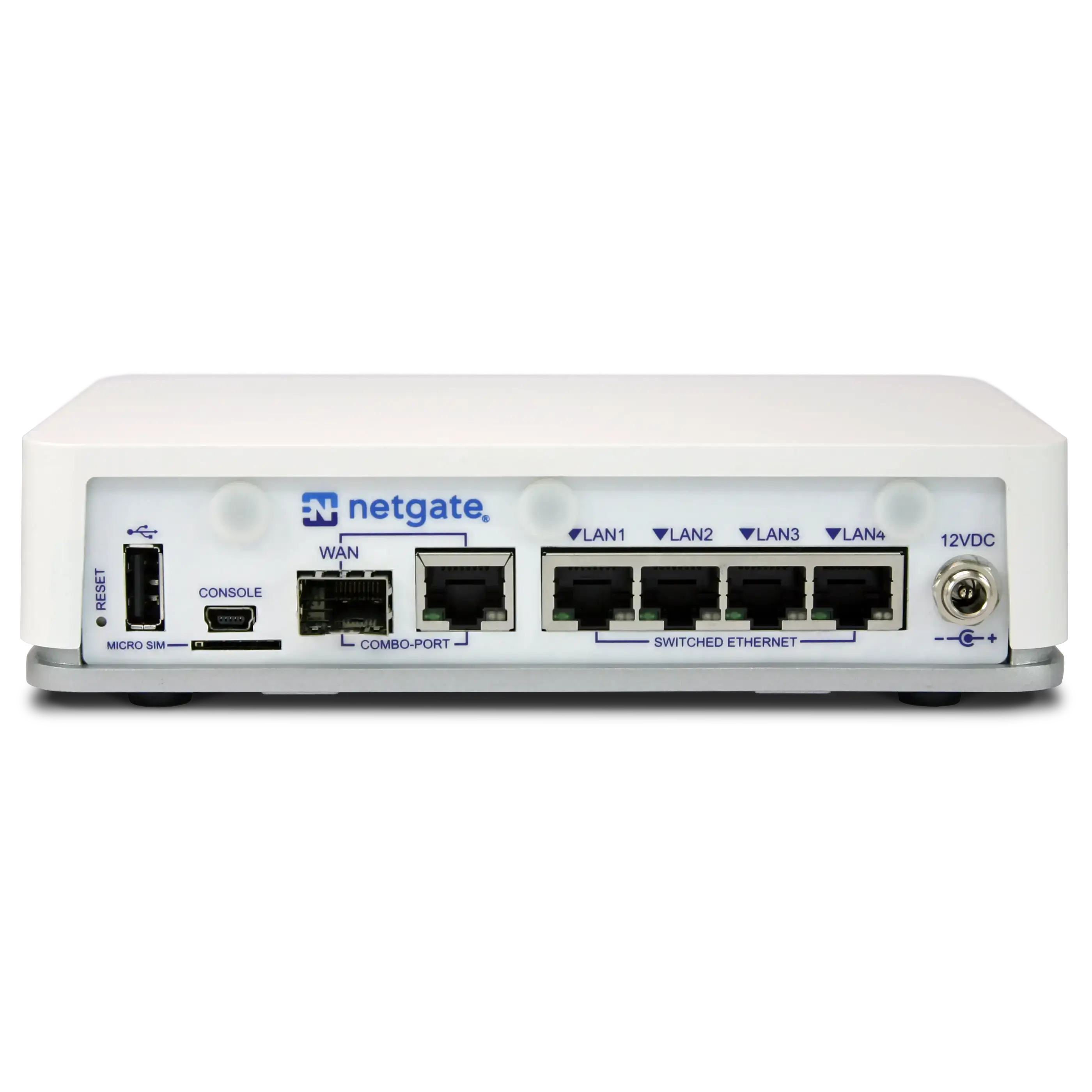

Netgate 2100 Netzwerkgerät Rückseite mit Anschlüssen für WAN, LAN1, LAN2, LAN3, LAN4, Konsole und Combo-Port
Netgate 2100 Netzwerk-Appliance.

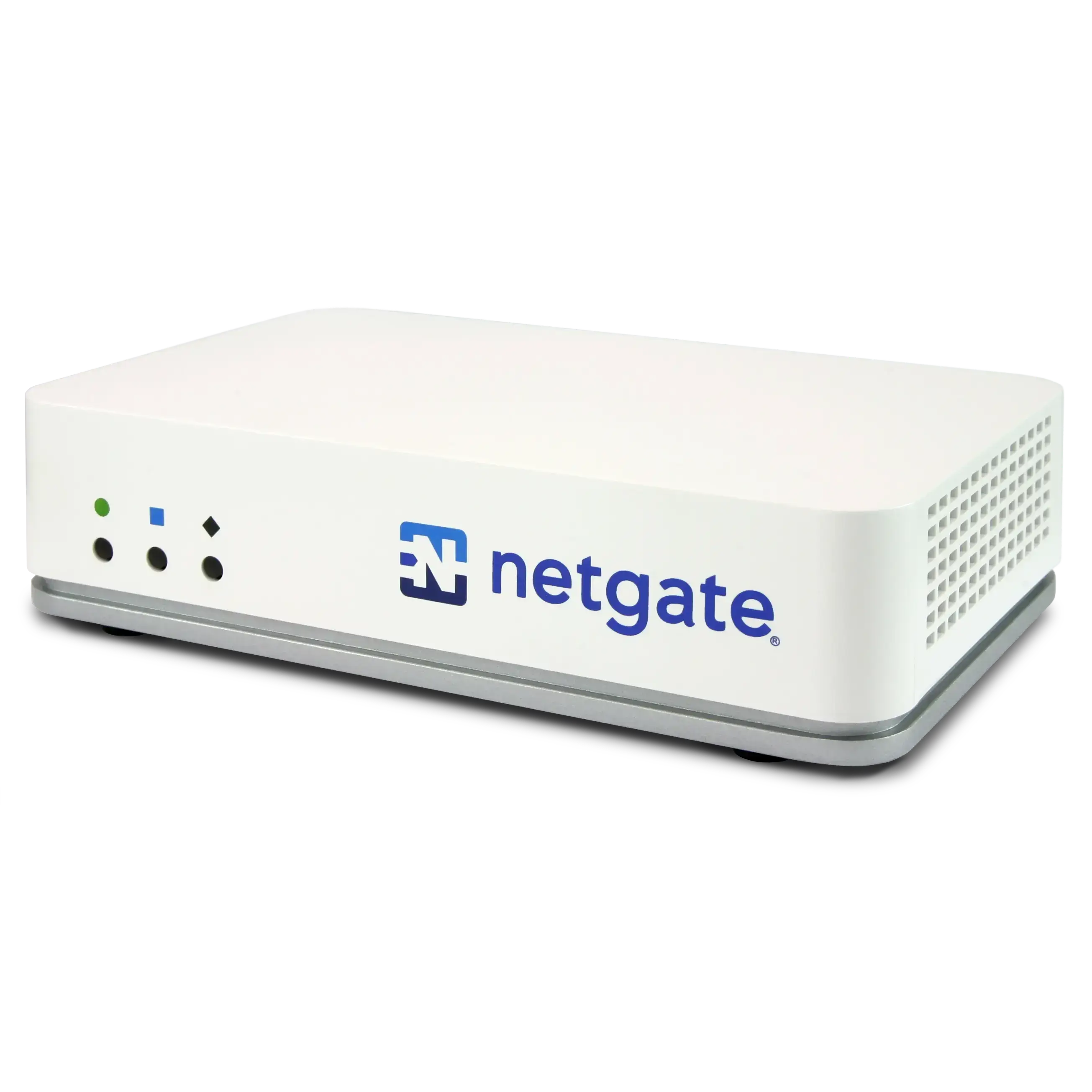

Netgate 2100 Firewall Appliance, klein und leistungsstark, Netzwerksicherheit in weißem Gehäuse
Netgate 2100 Netzwerk-Sicherheits-Appliance - Kompakte Firewall-Lösung für zuverlässigen Schutz und optimale Netzwerksicherheit

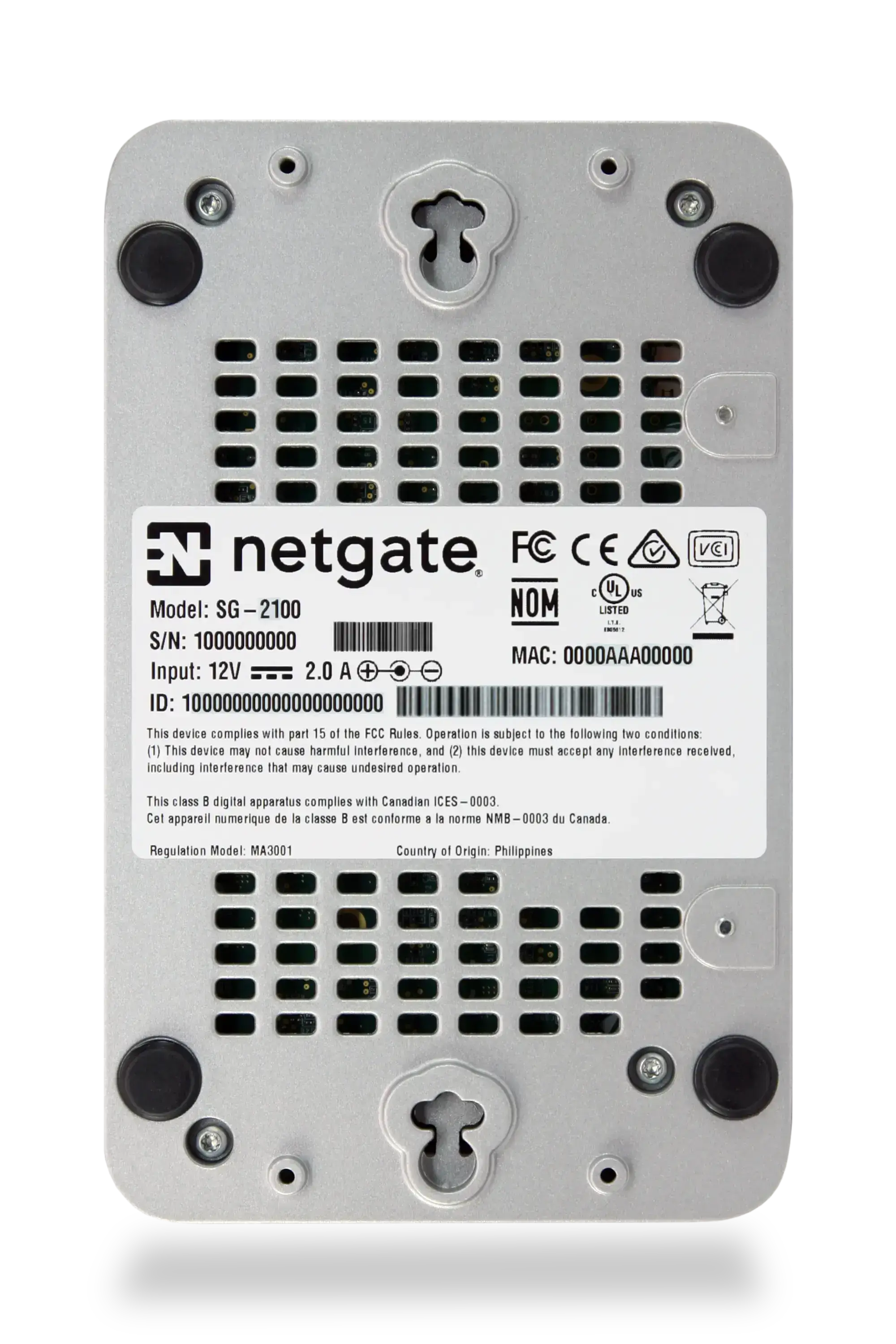

Unterseite des Netgate 2100 Router mit Modellinformationen und Seriennummer in deutscher Sprache

Netgate 2100

Sale price€369,00 EUR

Tax excluded. Shipping calculated at checkout

Your advantage : No customs duties and no import tax within the EU.

The hardware includes the latest version of pfSense+ (preinstalled).

Throughput: IMIX: 314 Mb/s firewall, 46Mb/s IPSec

The 4 switch ports can be configured in the GUI.

Storage: 8GB eMMC (Base)

Storage
Netgate support: TAC Lite (Free)

Netgate support
Initial setup of LanCologne: Without configuration

Initial setup of LanCologne
In stock
✆ Questions? Chat on WhatsApp now

The Netgate® 2100 Security Gateway Appliance with pfSense® Plus software offers unbeatable performance and flexibility in its class. It is ideal for home, remote workers and small businesses that need more computing resources to leverage multiple pfSense add-on packages and VPN performance for multiple user and site-to-site connections. Equipped with a dual-core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4GB DDR4 RAM and expandable memory. The 2100 has additional expansion slots for DIY LTE, Wi-Fi or M.2 SSD expansion.

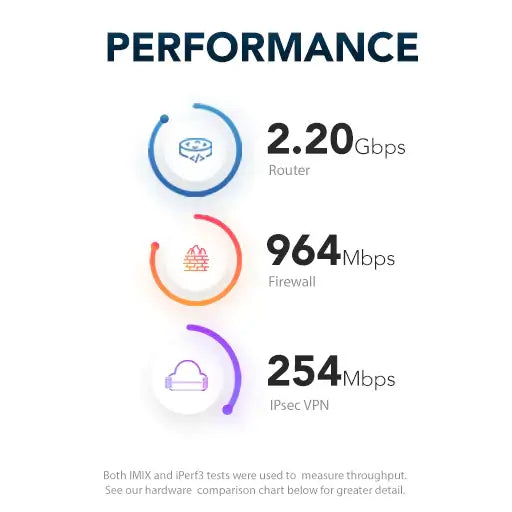

The Netgate 2100 is a compact and powerful desktop device. With a dual-core 1.2 GHz ARM Cortex A53 processor and 4 GB of DDR4 RAM, the Netgate 2100 is ideal as a 2.20 Gbps router, 964 Mbps firewall, or 254 Mbps IPsec VPN solution.

L3 Forwarding

  • IPERF3 traffic: 2.20 Gbps
  • IMIX traffic: 594 Mbps

Firewall

(10k ACLs)

  • IPERF3 traffic: 964 Mbps
  • IMIX traffic: 249 Mbps

IPsec VPN

(AES-GCM-128 / AES-NI w/ SafeXcel)

  • IPERF3 traffic: 254 Mbps
  • IMIX traffic: 90 Mbps

Netgate 2100 performance tests performed with pfSense Plus software version 22.01

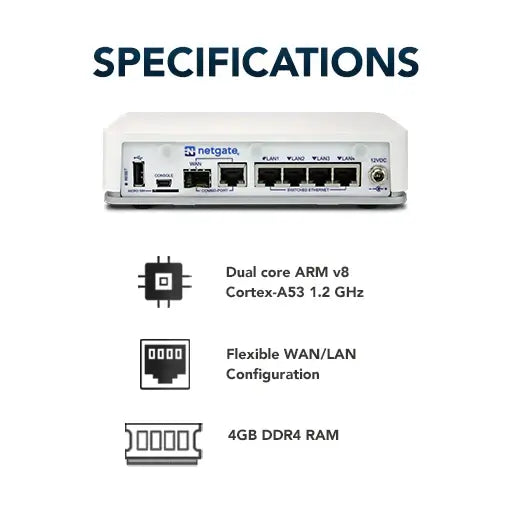

CPU: The dual-core ARM v8 Cortex-A53 running at 1.2 GHz delivers 2.20 Gbps routing for common iPerf3 traffic and over 964 Mbps firewall throughput.

Network connections: Flexible 5-port combination with (1) 4-port 1 GbE Marvell switch and a dedicated (1) GbE WAN RJ45/SFP combo port.

Memory:8 GB eMMC Flash onboard (or optional 32 GB M.2 SATA 2242 SSD)

Memory: 4 GB DDR4, DDR4 memory enables more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).

Cooling:The passive cooling system and low power consumption of the Netgate 2100 ensure efficient thermal management and quiet operation, as expected from smaller devices despite significantly higher performance.

pfSense Plus software delivers the performance, flexibility, reliability and business security expected from leading secure network applications:

  • Up to 10 Gbit/s performance
  • Flexible options for third-party applications
  • Traditional management mechanisms
  • Proven reliability
  • Comprehensive support for securing business

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, transparency caching proxy, web content filtering, failover WAN and more.

Technical specifications

Here you will find the most important technical data about the product. If you have any questions, you can always contact our customer service.

CPU

Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU

CPU cores

2 cores

network

5x Gigabit Ethernet Ports: 1x Gigabit Ethernet (RJ45 / SFP Combo) 4x Gigabit Ethernet (Marvell 88E6141 switch, uplinked at 2.5 gbps)

Storage

8GB eMMC Flash on board

R.A.M.

4GB DDR4

extension

1x M.2 'B' key socket (SSD, LTE)
1x miniPCIe (WiFi)
microSIM slot (requires separate LTE modem)

console port

Mini-USB

USB ports

1x 2.0 port

LEDs

3x configurable full color RGB LEDs

Other

form factor

Desktop H4.22cm x D10.8cm x W17.27cm

cooling

Passive

power adapter

External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 4.16A, threaded barrel connector
AC Inlet: IEC320-C14 (3 PIN)
German power cord IEC connector C13 power cord

Vicinity

0°C – 50°C

power consumption

certificates

CE, FCC (Class B), RoHS, UL, RCM, VCCI

support

Netgate Support TAC Lite Included
Netgate Support TAC Professional and TAC Enterprise at extra cost
All support services are provided by Netgate USA.
LanCologne is only an intermediary in the sale of the service.

Advantages of the Netgate 2100

PRODUCT FEATURES

LOW TOTAL COST OF OWNERSHIP

  • No artificial limitations or additional programs required to make your system fully functional
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low energy consumption to save money
  • No moving parts that wear out. This system is designed for a long period of use

GROW WITH YOU

  • From firewalls to multifunction security gateways, get the security you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Maximum active connections: 1 million

EASY MANAGEMENT OF THE USER INTERFACE

  • Manage pfSense Plus settings via our web-based GUI
  • No fiddling with a command line interface or typing obscure commands

SECURE REMOTE ACCESS

  • Connect between your offices via encrypted virtual private networks (VPN), let mobile workers connect securely, or connect to the cloud.
  • Use the built-in Amazon VPC wizard to easily establish VPN connections to your Amazon EC2 cloud.

BEST SUITED FOR:

  • Consumer
  • Remote workers
  • Networks for small and medium-sized enterprises
  • Small to medium sized branches
  • Managed Service Provider / Managed Security Service Provider (MSP/MSSP) On-Premises Appliance

SOFTWARE FEATURES:

pfSense Plus software is a powerful firewall, router and VPN solution based on a number of highly regarded open source projects. The software effectively competes with far more expensive commercial alternatives and is used by hundreds of thousands of businesses, educational institutions and government agencies around the world. Leading features and capabilities for secure networking include:

  • Ad Blocker (pfBlockerNG)
  • Unencrypted portal
  • CARP / HA
  • DNS server
  • DHCP server
  • HTTP transparent / Web / Reverse Proxy (Squid)
  • IP / Country Block List (pfBlocker)
  • IDS/IPS
  • Package capture / inspection
  • Port forwarding
  • QOS / rate limiter
  • Software load balancer (HA proxy)
  • Traffic monitoring
  • Traffic logging, statistics and charts
  • Traffic design
  • VLAN
  • Wake-on-LAN
  • Website Blocker (pfBlocker)

Learn more about the power of pfSense Plus software here .
