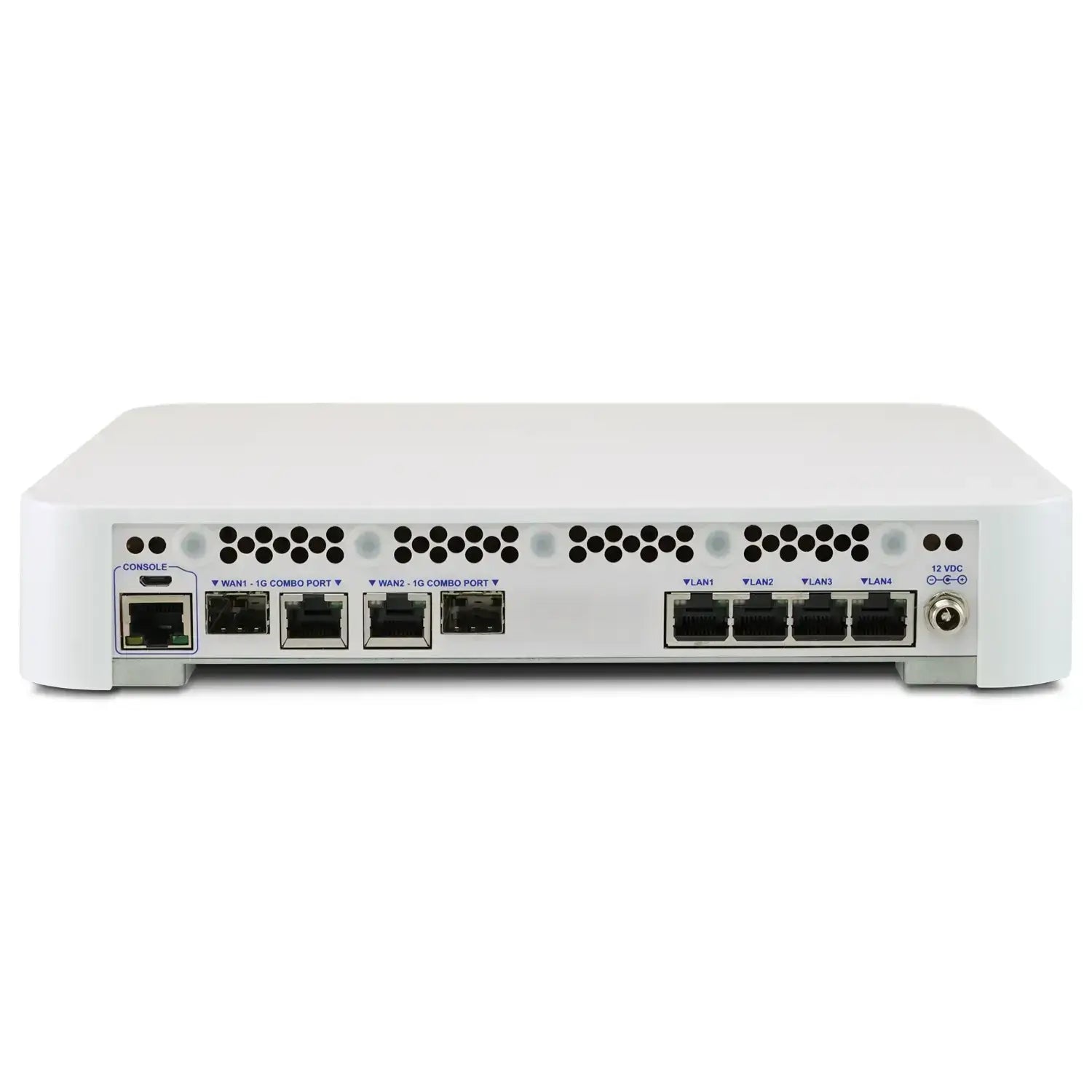

Rückansicht des Netgate 4200 Netzwerk-Sicherheitsgeräts mit verschiedenen Ethernet- und Konsolenanschlüssen

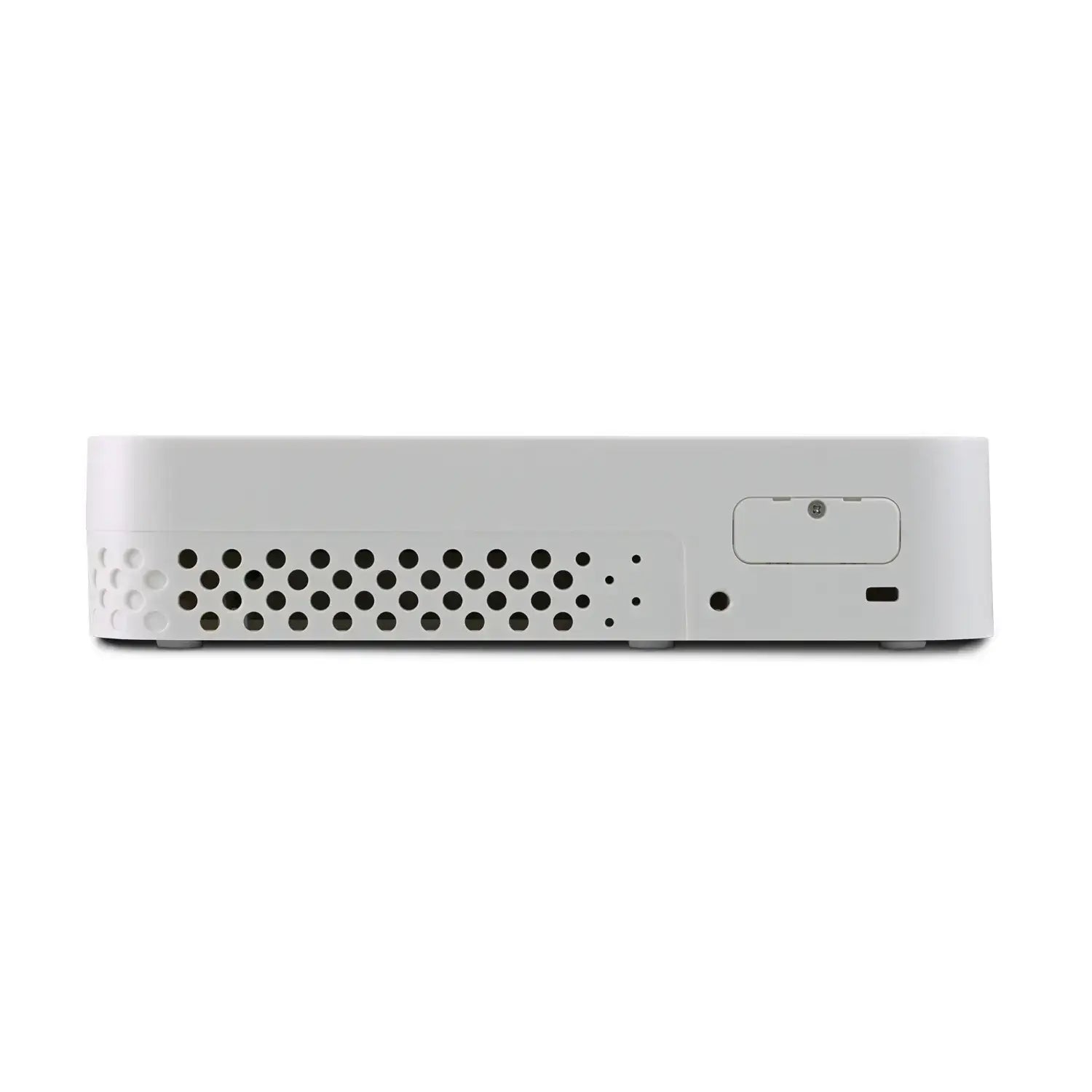

Rückansicht des Netgate 4200 Geräts, zeigt USB-Ports und Lüftungsschlitze
Rückansicht des Netgate 4200 Netzwerkgeräts mit Lüftungsöffnungen und Anschlüssen
Netgate 4200 Router für Netzwerksicherheit in weißem Gehäuse
Netgate 4200 Sicherheitsgerät in weiß mit dem Netgate-Logo auf der Vorderseite.
Rückseite des Netgate 4200, ein leistungsstarker Netzwerk-Sicherheitsrouter in weißer Farbe mit Modellinformationen und Zertifizierungsaufklebern

Netgate 4200

Sale price€569,00 EUR

Tax excluded. Shipping calculated at checkout

Your advantage : No customs duties and no import tax within the EU.

The hardware includes the latest version of pfSense+ (preinstalled).

Netgate 4200

Storage: 4GB RAM + 16GB Storage (Base)

Storage
Netgate support: TAC Lite (Free)

Netgate support
Initial setup of LanCologne: Without configuration

Initial setup of LanCologne
In stock
✆ Questions? Chat on WhatsApp now

The Netgate® 4100 with pfSense® Plus software is one of the most versatile security gateways in its class. It combines the power of a dual-core Intel® Atom® C3338R core CPU with integrated QuickAssist & AES-NI and 4 GB of memory for a fast user experience, and delivers flexible WAN/LAN routing via 8.15 Gbps L3 over six independent - (2) 1 GbE and (4) 2.5 GbE - ports.

The Netgate 4100 is ideal for pro-home, small/medium business or edge deployments that require flexible port configurations to support 1 to 2.5 Gbps WAN capabilities via (2) RJ45 copper/SFP fiber combo WAN ports and (4) 2.5 Gbps discrete, unswitched RJ-45 Ethernet LAN ports - all in a quiet desktop form factor.

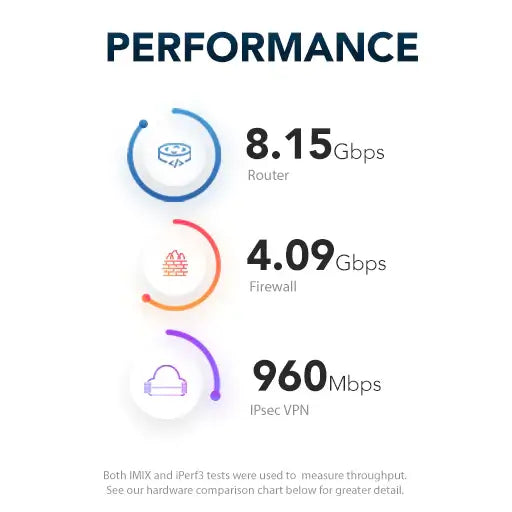

L3 Forwarding

  • IPERF3 traffic: 8.15 Gbps
  • IMIX traffic: 3.24 Gbps

Firewall(10k ACLs)

  • IPERF3 traffic: 4.09 Gbps
  • IMIX traffic: 1.40 Gbps

IPsec VPN(AES-GCM-128 w/QAT)

  • IPERF3 traffic: 960 Mbps
  • IMIX traffic: 312 Mbps

Netgate 4100 performance tests performed with pfSense Plus software version 22.01

CPU: Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz. 8.15 Gbps routing for common iPerf3 traffic and over 4.09 Gbps firewall throughput.

Network ports: 6 independent 1G and 2.5G Flexible WAN/LAN configurations. Use a combination of 6 ports for maximum flexibility - with 1 and 2.5 Gbps WAN capabilities via RJ45 and SFP ports, and 4 discrete 2.5 Gbps non-switched LAN ports

Memory: 16 GB eMMC (or optional 128 GB NVMe M.2 SSD with Netgate 4100 Max)

Memory: 4 GB DDR4 RAM, DDR4 memory enables more stable, higher transfer rates for memory-intensive applications (e.g. IDS/IPS).

Cooling: The passive cooling system and low power consumption of the Netgate 4100 ensure efficient thermal management and quiet operation, as expected from smaller devices despite significantly higher performance.

pfSense Plus software delivers the performance, flexibility, reliability and business security expected from leading secure network applications:

  • Up to 10 Gbit/s performance
  • Flexible options for third-party applications
  • Traditional management mechanisms
  • Proven reliability
  • Comprehensive support for securing business

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect answer. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, transparency caching proxy, web content filtering, failover WAN and more.

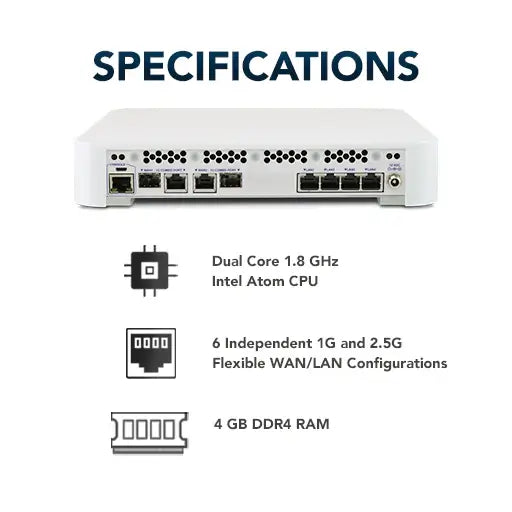

Technical specifications

Here you will find the most important technical data about the product. If you have any questions, you can always contact our customer service.

CPU

Intel® Atom® C3338R with QAT, 2-core @ 1.8 GHz (Denverton family)

CPU cores

2 cores

network

2x 1 Gbps (RJ45 copper / SFP fiber) "Combo Port" 4x 2.5 Gbps RJ-45

Storage

16GB eMMC Flash on board

R.A.M.

4GB DDR4

extension

console port

"Cisco pinout" RJ45 + micro USB

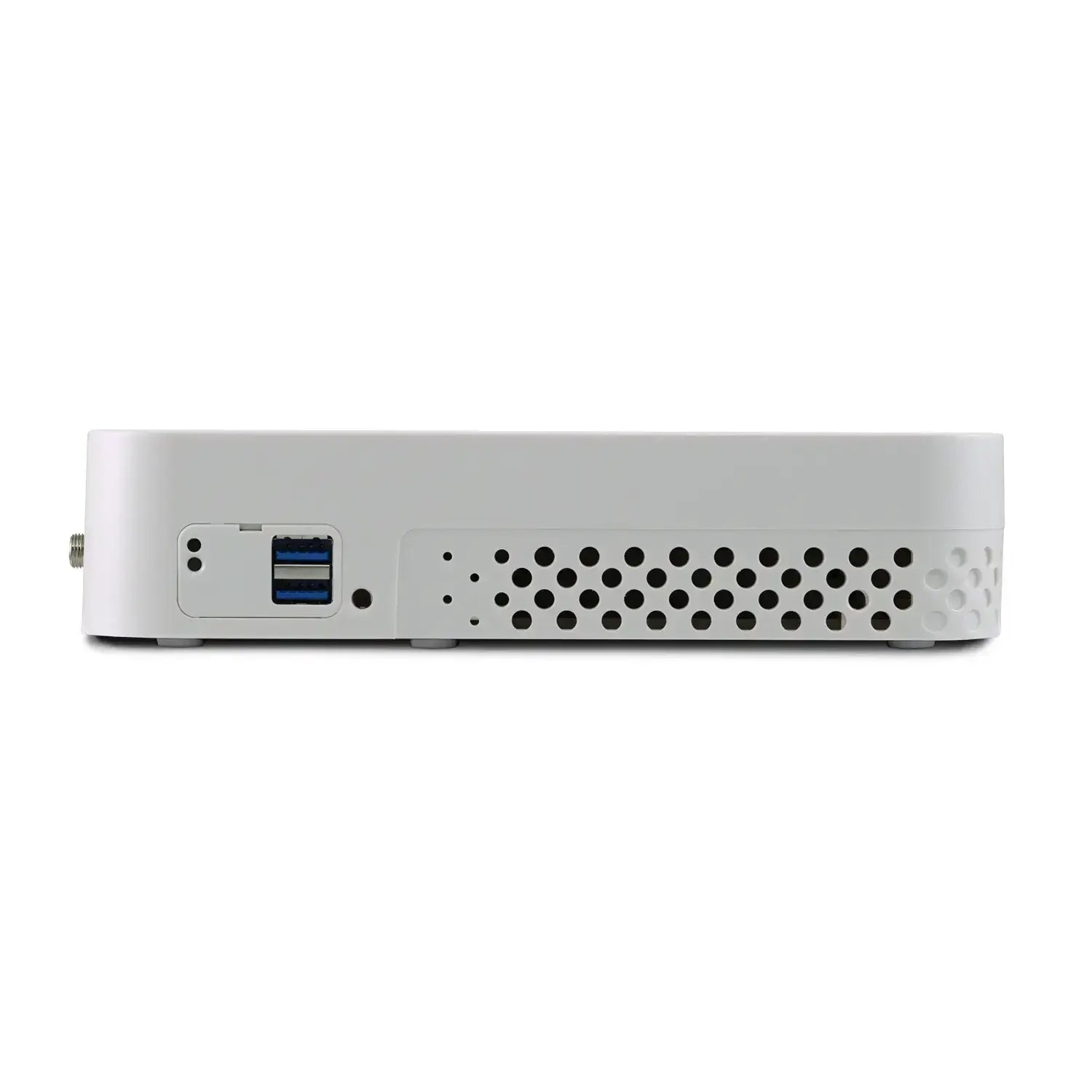

USB ports

2x USB 3.0 ports

LEDs

3 x RGB LED(s)

Other

form factor

desktop

cooling

Fanless, passive CPU heat sink

power adapter

Input: DC jack with threaded barrel connector
External ITE P/S AC/DC 100-240V, 50-60Hz, 60W
AC Inlet: IEC320-C14 (3 PIN)
German power cord IEC connector C13 power cord

Vicinity

0°C (32°F) to 40°C (104°F)

power consumption

certificates

support

Netgate Support TAC Lite Included
Netgate Support TAC Professional and TAC Enterprise at extra cost
All support services are provided by Netgate USA.
LanCologne is only an intermediary in the sale of the service.

Advantages of the Netgate 4200

LOW TOTAL COST OF OWNERSHIP

  • No artificial restrictions or additional programs are required to make your system fully functional.
  • No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.
  • Low power consumption to save you money.
  • This system is designed for a long period of use.

GROW WITH YOU

  • From firewalls to unified threat management, you get all the security features you need to protect your home or business.
  • Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.
  • Add optional packages like Snort or Suricata for IDS/IPS and network security monitoring, Squid for optimized content delivery, and SquidGuard for anti-spam/anti-phishing and URL filtering . 1
  • Maximum active connections: 4,000,000

EASY MANAGEMENT OF THE USER INTERFACE

  • Manage pfSense Plus software settings through our web-based GUI.
  • You don't have to mess with a command line interface or type obscure commands.

SECURE REMOTE ACCESS

  • Connect between your offices via encrypted virtual private networks (VPN), let mobile workers connect securely, or connect to the cloud!
  • Use the built-in Amazon VPC wizard to easily establish VPN connections to your Amazon EC2 cloud.

BEST SUITED FOR:

  • Consumer
  • Remote workers
  • Networks for small and medium-sized enterprises
  • Small to medium sized branches
  • Managed Service Provider / Managed Security Service Provider (MSP/MSSP) On-Premises Appliance
  • Company
  • All who are looking for high performance without fan noise
  • Situations where a rackmount system is not an option
  • Everyone with high-speed gigabit connections
  • Many VPN connections



SOFTWARE FEATURES:

pfSense Plus software is a powerful firewall, router and VPN solution based on a number of highly regarded open source projects. The software effectively competes with far more expensive commercial alternatives and is used by hundreds of thousands of businesses, educational institutions and government agencies around the world. Leading features and capabilities for secure networking include:

  • Ad Blocker (pfBlockerNG)
  • Unencrypted portal
  • CARP / HA
  • DNS server
  • DHCP server
  • HTTP transparent / Web / Reverse Proxy (Squid)
  • IP / Country Block List (pfBlocker)
  • IDS/IPS
  • Package capture / inspection
  • Port forwarding
  • QOS / rate limiter
  • Software load balancer (HA proxy)
  • Traffic monitoring
  • Traffic logging, statistics and charts
  • Traffic design
  • VLAN
  • Wake-on-LAN
  • Website Blocker (pfBlocker)
