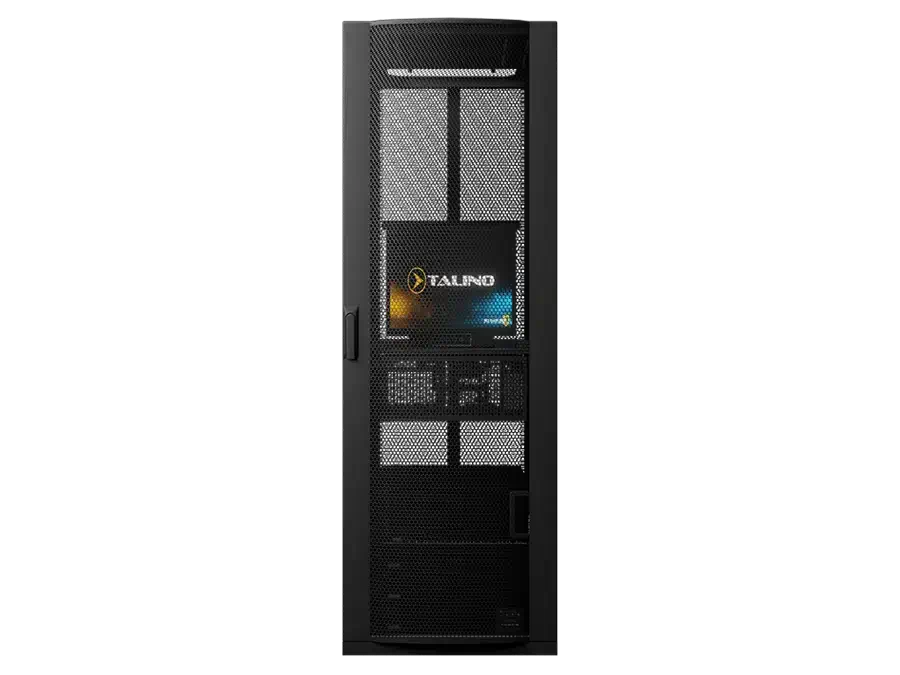

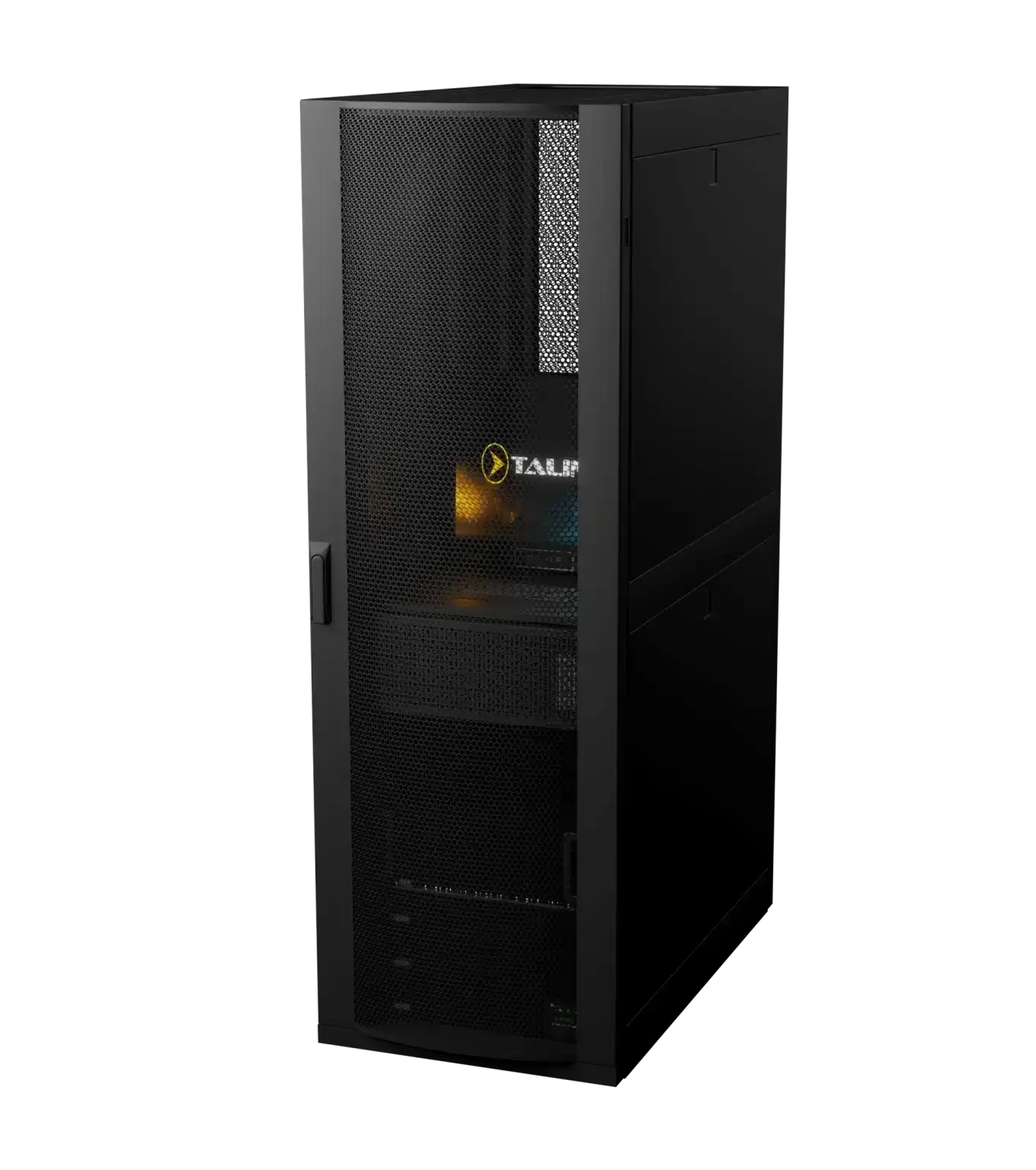

SUMURI TALINO KA Hyper Server

The SUMURI TALINO KA-Hyper Server is our flagship solution to processing and storage that rivals all other solutions in the computer server market. The TALINO KA-Hyper Server holds more storage than any other solution on the market including the big name vendors in the world of IT based storage / server solutions. Coming in at up to a colossal 5.16 petabytes of raw space, this beast will handle all your storage needs from case files to body cam footage!

Node for Managing External Data Storage:

• Two (2) Intel Xeon Gold 6334 3.6GHz 8-Core FCLGA4189 Processors
• Active Cooling for the Central Processing Units
• 64GB of DDR4 2666 MHz ECC RAM*
• Three (3) 1TB SSDs configured in RAID 5 for the Operating System
• Ten (10) 10TB Hard Drives configured in RAID 6 for Backups
• Two (2) High End RAID Controller Cards with 12 Gb/s Processing
• One (1) RTX A4000 with 16GB GDDR6 VRAM Graphics Processing Units
• One (1) 10GbE Dedicated PCIe NIC Controller with Two (2) RJ-45 Ports
• One (1) 16GbE Dedicated PCIe NIC Controller with Two (2) SFP+ Ports
• One (1) 2.5” Hot Swap Bay with Four (4) Removable Trays – Filled up with Three (3) 1TB SSDs for the Operating System
• Two (2) 3.5” Hot Swap Tray totaling Ten (10) Removable Bays – Filled with above 10TB Disks
• One (1) 2 Port USB 3.0 Hub
• One (1) 1600 Watt Power Supply Unit
• Microsoft Windows Server 2019 Essentials (No CALs Required) **
• Acronis Cyber Protect – Backup Advanced Server – 3 Year License

Server Components:

• Two (2) 4U JBOD Backplanes 720TB (1.44PB) – Contains One Hundred Twenty (120) 12TB HDDs (8U Total)
• 4U 5000VA 4500W UPS Smart Online Rackmount 5kVA 208V/120V 6URM RT – NEMA L6-30P input (3 wire)
• 2U Step-Down Transformer Rackmount
• 1U Single Port KVM Console for Server Rack – VGA KVM – 19in
• 1U 52-Port Smart Managed Pro Switch, 48 GbE, 4 10Gb Ports
• 0U PDU 100V – 240V 16A – 12 C13; 2 C19
• 0U 120V PDU
• Three (3) Year Standard Warranty

Sixty (60) Drive Backplane Details

• Host Connections: 4 x 12GBps SAS

Capacity / Physical Size

• Capacity (minimum): 720TB with 12TB drive modules
• Capacity (maximum): 1320TB with 22TB drive modules
• Dimensions (Enclosure): 174.8mm x 424mm x 881mm / 6.88in. x 16.69in. x 34.7in.
• Dimensions (Enclosure with CMAs): 8mm x 424mm x 983mm / 6.88in. x 16.69in. x 38.7in.
• Weight: 81 kg (198 lbs.) – fully configured with 60 helium drive modules; 93.71 kg (208 lbs) – fully configured with 60 air drive modules

Power and Cooling Specifications

• Power Supply: Two 1,650W PSUs, hot swap, and redundant
• Input Voltage: 200-240VAC auto-ranging, 47Hz-63Hz input (high line power only)
• Cooling Fans: N+1 redundant fans (fans integrated in PSU)

Environmental Specifications (operating)

• Temperature Range: 5° to 35°C
• Humidity: 8% to 80% (non-condensing)
• Shock: 5g 6ms Pulse vertical shock
• Vibration: Random 0.25 Grms, 5-10Hz, 0.05 g sine wave sweep, 10-300Hz
• Acoustics: <7.5dB LwA @ 23oC

Environmental Specifications (non-operating)

• Temperature Range: -30° to 60°C
• Humidity: 8% to 80% (non-condensing)
• Shock: 8g 6ms Trapezoidal
• Vibration: Random 0.6 Grms 10-300Hz

*The TALINO KA-Hyper Server uses a Hardware RAID configuration, the installed RAID card does not require additional RAM to operate.**Windows Essentials has a 64GB of RAM limitation. To exceed this, contact us for a more personalized configuration for your agency or organization.Pleasecontact usfor additional configurations with theTALINO KA-Hyper Server. We have a variety of solutions in place to meet and exceed your processing and storage needs. Our experts can customize the server to maximize your workflow and processing!
